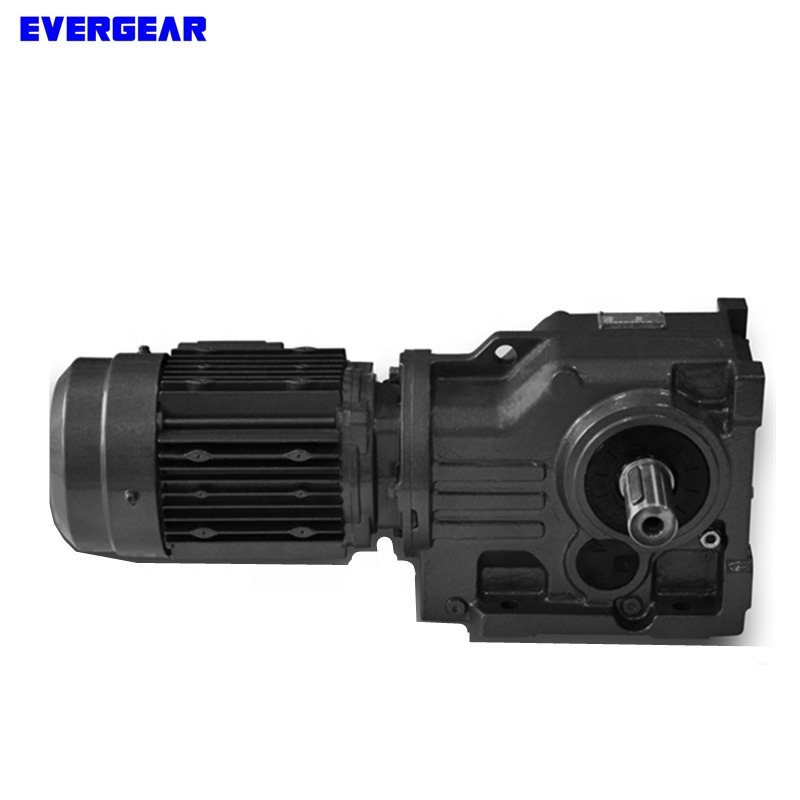

HT250 Cast Iron K Series Gear Reduction Gearbox Helical Bevel Motor

1 Piece
MOQ
HT250 Cast Iron K Series Gear Reduction Gearbox Helical Bevel Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Gearing Arrangement: Bevel / Miter
Output Torque: 105-27200nm
Rated Power: 0.37-200 (Kw)
Input Speed: 500~1800rpm
Output Speed: 7~440 Rpm
Model Number: K Series Bevel Gear
Mounting Position: Foot Mounted,Flange Mounted,Shaft Mounted
Housing Material: HT250 Cast Iron
Voltage: 380-440V
Colour: Red,Blue,Grey And Depend On Your Requirements
Packaging: Wooden Case Or Pallet
Nameplate: Any Nameplate Your Need
Sample: Avalible Sample Of K Series Helical Bevel Gear Reducer With IEC Motor
Delivery Time: 20-25days
Standard: ISO9001,CE,GB18001 Etc
Gears: Hardened Gears,helical Gears And Bevel Gears
Basic Infomation
Model Number: K series Bevel Gear
Payment & Shipping Terms
Packaging Details: Strong carton and wooden pallets for K Series Helical Bevel Speed Reduction Gearbox Motor
Supply Ability: 999999 Piece/Pieces per Month
Product Description
Product Description

1. Size:27,37,47,57,67,77,87,97,107,137,147,167


2. Power range:0.18KW-200KW

Ratio: 3.4– 280.6
Output Speed:0.11-440rpm
Output torque: 105-27200nm
Input speed:750rpm,1000rpm,1500rpm,1800rpm.
Output shaft diameter:25mm-120mm
Reduction stage: two stages, three stages,
Mounting way: foot mounted, shaft mounted, flange mounted
Output way: Solid shaft
Weight:6.2KGS-770KGS
Ambient temperature:-15.00 [°C] ~ +50 [°C]
Direction of rotation of gear output shaft: CW rotation or CCW
Corrosion protection: Conservation acc. to Norm
Coating system: Standard coating, finishing coat, for all climatic zones
Color: Blue or any color you need

3. Advantages:

•Modular design system Multi-purpose use of the housing and internal components.
•Progressive ratio of sizes for optimum selection of sizes.
Product Name
K Series Helical Bevel Speed Reduction Gearbox Motor
Gear type
Helical bevel gears
Color
Blue or Grey or custom
Standard
ISO9001:2008/CE
Brade
EVERGEAR
Application
Industrial application
Products Show
Our Service

High quality

Passed the ISO9001:2008 quality system authentication

Application Service

We'll help you find an affordable, high quality, and energy efficient gear drive solution that best suits your application in industry

Online Service

24/7 service(whatsApp/skype/Email/Phone Call)

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details  : Packing,waterproof,Strong wooden case,Fuming certifaction

Delivery Details : 3-40 days by air or ship(depends on destination)

1. Gear Motors are fasten on foot with screws
2. Mount on pallet
3. Packed with films
4. Fuming Wooden Cases
5. Strong Wooden cases and pallets
6. Marked Cases for delivery
Our Certifications


ISO9001:2008   /  CE   /   ISO18001  /  One famous of Chinese Gear Reducer Brand

Customer Photo

Reliable Gear Drive Supplier

*High quality products
*CE,ISO9001:2008,ISO18001 quality control system
*12 months industry's best warranty
*Factory price
*24/7 service




Customer's Brands




Customer's  Brands


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.Our factory is located in Pingyang county Wenzhou city of Zhejiang province China

Q: How long is your delivery time?

A: Generally it is 20-30 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample and freight cost.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shippment.
