Hotels 3 Stage 10hp Electric Motor With 3 Stage Bevel Gearbox Helical Gear Motor

1 Set
MOQ
Hotels 3 Stage 10hp Electric Motor With 3 Stage Bevel Gearbox Helical Gear Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Gearing Arrangement: Bevel / Miter
Output Torque: 450~130,000n/m
Input Speed: <=1,500r/min
Output Speed: 134~1,200r/min

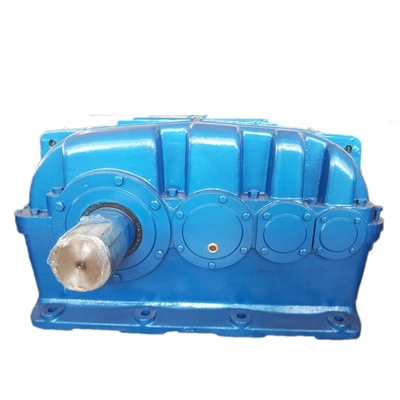

Product Name: ZLY250 Parallel Shaft Helical Gearbox Reducer
Certificate: CCC,CQM,Supplier Assessment, MA
Mounting Position: Horizontal (foot Mounted) Or Vertical (flange Mounted)
Color: According To Customer's Quest
Model: Z Series
Material: Steel Or Cast Iron
Gear Material: Low Carbon High Alloy Steel
Heat Treatment: Carburising/quenching/gear Grinding
Gear Accuracy: Less Than 6
Quality: Super
Basic Infomation
Certification: CCC,CQM,Supplier Assessment, MA
Model Number: Z series
Payment & Shipping Terms
Product Description
Product Description

Introduction

This is a rigid gear reducer in compliance with national standard.
ZDY, ZLY, ZSY and ZFY horizontal-axis driving column reducers have driving products of level one, level two,
level three and level four.
Specification
item
value
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin
China
Jiangsu
Brand Name
GUOMAO
Gearing Arrangement
Helical
Output Torque
450~130,000n/m
Input Speed
<=1,500r/min
Output Speed
134~1,200r/min
Product name
ZLY250 parallel shaft helical gearbox reducer
certificate
CCC,CQM,Supplier Assessment, MA
mounting position
Horizontal (foot mounted) or Vertical (flange mounted)
color
according to customer's quest
model
Z series
material
steel or cast iron
gear material
low carbon high alloy steel
heat treatment
Carburising/quenching/gear grinding
gear accuracy
less than 6
quality
super
Product Details
Company Profile
Founded in 1993, Shandong Guomao Guotai Reducer Co., Ltd. is a large-scale reducer manufacturer in China. We own a workshop covering an area of 50,000sqm and over 600 machining tools and testing equipment. In our 4,000sqm constant temperature workshop, there are 58 sets of high-efficiency and high-precision NC gear grinding machines and an automatic gear testing center, which represent world-class level. The machine's installation and debugging precision is up to Grade 3, which ensures mass production of Grade 5-6 gears. Our annual sales income is over RMB900 million. Our products sell well all over the world. We have successfully developed various products, including B and X serial cycloidal-pin gear speed reducers, 8000 serial cycloidal-pin gear speed reducers, Z (ZDY, ZLY, ZSY, and ZFY) serial hard gear face cylindrical gear speed reducers, MBY serial side-driven reducers, D (DBY and DCY) serial hard gear face cone gear speed reducers, GR serial helical gear speed-down motors, GS serial helical gear worm gear speed-down motors, GK serial helical gear curved tooth cone gear speed-down motors, GF serial parallel axis helical gear speed-down motors, P and V serial industrial gearboxes, ZLYJ serial hard gear face speed reducers for plastic extruders, and YB serial oil cooling electric drive drums. We also design and manufacture non-standard speed reducers. In addition, we recommend RV and VF serial aluminum alloy worm gear speed reducers, WP serial involute worm gear speed reducers, JWM, SWL and WSH serial screw lifters, CW serial arc worm gear speed reducers, secondary enveloping worm gear speed reducers, and various couplers. Please feel free to contact us for further information.
Application

Use Scope

☂ The input rotation of prime mover shall be ≤ 1500 rpm.
The peripheral speed of gear drive shall be ≤20m/s.
The working temperature shall be within -40℃~45℃. Preheat the lubricating oil or choose the low temperature lubricating oil (as required) under low ambient temperature. Contact us for detailed information.
Rotation is available both forwards and backwards (except a reverse stop is mounted on reducer).
Packing and service
FAQ
1. who are we?
We are based in Shandong, China, start from 2003,sell to North America(34.00%),Western Europe(34.00%),Southeast Asia(16.00%),Mid East(16.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Reducer,Motor

4. why should you buy from us not from other suppliers?
Founded in 1993, Shandong Guomao Guotai Reducer Co., Ltd. is a large-scale reducer manufacturer in China. We own a workshop covering an area of 50,000sqm and over 600 machining tools and testing equipment. In our 4,000sqm constant temperature workshop.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
