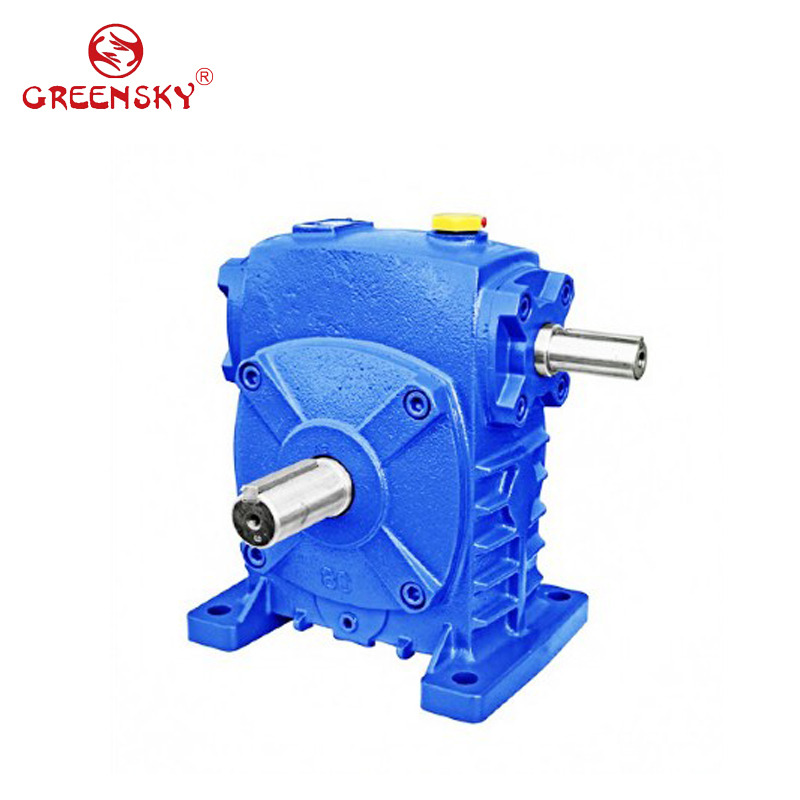

Factory WP Series K Series Worm Gearbox High Torque Reducer

10 Pieces
MOQ
$39.00(10 - 49 Pieces) $35.00(50 - 199 Pieces) $30.00(>=200 Pieces)
Price
Factory WP Series K Series Worm Gearbox High Torque Reducer
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Farms
Gearing Arrangement: Worm
Output Torque: Single Stage 6-6050 N.m Double Stage 63-6050 N.m
Input Speed: 1500rpm
Output Speed: 14-300RPM
Ratio: Single Stage 10~60,double Stage 200~900
Color: Can Be Customized
Power: 0.12 ~ 33.20 KW
Basic Infomation
Payment & Shipping Terms
Packaging Details: Carton+wooden case
Supply Ability: 20000 Piece/Pieces per Month
Product Description

KA KB KAE KVA KVB worm gearbox

Structure Feature

1. Widely used in light industry, good resistance to wearing, with high precision in dimensions, lower noise, advanced centric running castings

2. The housing is of strong hardness, compact structure

3. Stable transmission, low vibration, large ratio, canbe matched with various machines

Product Structural Drawing

Model Description

Total 60 families and more than 20,000types with different models, ratios, connections and installations can be selected to meet requirements of customers.

View Of Item

KB worm gearbox

KA worm gearbox

Notice of installation

1. The base-plate must be plane and stoutness, and the base-plate must be screwed down and shockproof

2. The connecting shaft of prime mover, gearbox and operation device must be coaxial installatios

3. The diameter tolerance zone of input and output shaft is H6, the holes of fittings(such as couplings, belt-pulley, sprocket wheel and so on) must properly mate the shaft, which prevents bearing from breakage because of over-loose mate

4. Drivers such as sprocket wheel and gear must be fitted close to bearings in order to reduce bending stress of hanging shaft

5. White assembling motor of WPD reducer, it is necessary that proper amount of butter applies to the worm shaft input hole and keyway, avoiding assembling too tightly and rusting after using for a long time

6. When ordering or using all kinds of WPD type, if the motor weight is bigger than the common, supporting set is required

Notice of usage

1. Before using, please check carefully whether the gearbox model, distance, ratio, input connecting method, output shaft structure, input and output shaft direction and revolving direction accord with requirement

2. According to the requirement of selecting lubricant oil in the product manual, please fill proper category and brand lubricant. And then screw on the vent-plug; Unlock the small cone-plug of vent-plug. Only after doing these, reducer is already for starting up running. The proper brand and adequate lubricant oil is required, replacing oil in time conforming to the request of product manual is also necessary, especially after using first 100 hours, it is required refilling new oil

3. When abnormal circumstances occur, please stop and check reducer per solutions and reasons for faults of reducer (allowable highest oil temperature is 95, under this temperature limit, if oil temperature no more goes up, please let reducer continue running)

COMPANY OVERVIEW

About Greensky Power

  • History: Greensky Power Co.,ltd was founded in Los Angeles in 2008 and has focused on manufacturing and supplying motor and gearbox for 8 years since 2008.
  • Market: Greensky Power has customers in 30 different countries. Germany, Austria, Japan, USA and Middle-East are our main market.
  • Honors:Greensky Power is member of a council in Zhejiang Solar Association which is the biggest renewable energy association in Southeast of China.
Greensky's Advantage

Price

Competitive & Reasonable. Our mission is to Greening the World. Distributing massively in a cheap price is our strategy. We want more and more people are using high effeciency motor and gearbox.

Quality

Quality control is done by 4 processes: Manufacturer Control + Material Control + Production Control + Finished Goods Control.

Delivery

100% on-time delivery Guaranteed

Evaluation

100% Customer Satisfaction Guaranteed

Services

English, German, Japanese and Chinese sales representatives are available for One-stop full services.

Business type

Manufacture & Trading & EPC. Greensky Power has subsidiary company producing solar panels which makes our price very competitive. At same time, Greensky Power has a subsidiary EPC company which can give professional technical support for complicated technical questions.

Experience

Our products have been sold to strict clients in Germany and Japan. They are all satisfied with our products. Delivering quality products and convenient communication service are our goal.

On the site you can find a range of products including worm gearbox, DC gear motor,AC gear motor, and their relevant components.

FAQ

1 Q:What infomation should I tell you to confirm the worm gearbox?

A: Model/Size B:Ratio and output torque C:Power and flange type D:Order quantity.

2 Q: What if I don't know which worm gearbox need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.

3 Q:How long should I wait for the feedback after I send the enquiry?
A: Within 12 hours.

4 Q:What is your warrenty period for worm gearbox?

A:We offer one year warrenty since the vessel departure date left China.

5 Q:What industries are your worm gearbox being used?

A:Our worm gearbox are widely used in the areas of household appliances and light industry,etc.

6. Q:How to delivery:

A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.

By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)

Others - We arrange to delivery goods to some place in China appointed by buyers.

7. When you place an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.

If you have any other questions, please feel free to contact us.
