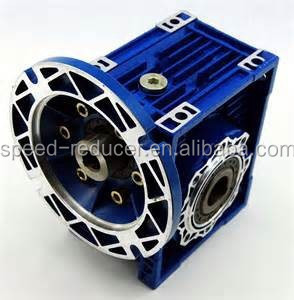

025-105 WanXin Model NMRV040 (Aluminum) Worm Gear Speed ​​Reducer Ratio 15, 7.5:1 With Electric Motor

1 Set
MOQ
025-105 WanXin Model NMRV040 (Aluminum) Worm Gear Speed ​​Reducer Ratio 15, 7.5:1 With Electric Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Gearing Arrangement: Worm
Output Torque: 2.6N.m~2379N.m
Rated Power: Up To 15KW
Input Speed: 1400RPM
Model Number: NMRV040
Ratio: 5-100 (5,7.5,10,15,20,25,30,40,50,60,80,100)
Main Material: 025-105(aluminium),110-150(cast Iron)
Colour: Silver By Wet Painting; Blue And Grey By Oven Powder Painting
Basic Infomation
Model Number: NMRV040
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 1000 Set/Sets per Month
Product Description

Worm gearboxes contain a worm/screw gear on the input shaft, and a mating worm/spur gear on the output shaft. Worm gearboxes also change the drive direction by 90°. Our gearboxes utilize C-face mounting interfaces for C-face motors.

Aluminum gearboxes feature hollow-shaft outputs (all the way through from one side to the other). For the aluminum gearboxes we also offer optional single and double output shafts, output flanges, torque arms, and output covers.

The highest quality materials are tested, certified, and used in the manufacturing process. Strict adherence to and compliance with the toughest international testing standards and manufacturing procedures assure you the highest quality products.

Features

5:1 to 100:1 ratios

Box sizes 30 to 75mm

Aluminum alloy housing for lightweight design

Hardened worm shaft for increased durability

Two bearings on input and output shafts

All units filled with Mobil SHC634 synthetic oil

No vent plug or breather needed; maintenance-free reducer

Double lip oil seals prevent leakage

Multiple mounting holes for all angle mounts

Epoxy paint applied to inside and outside of reducer to protect against corrosion

Hollow output bores with available plug-in output shafts

Mountable in any direction (except motor pointing up)

One year warranty

Applications

Use gearboxes with aluminum housings for applications that require lighter weight and/or less frequent run rate or service life.

Use with electric motors for reducing output speed, increasing torque, changing drive direction, or running two loads from one motor.

Use for conveyors, packaging machines, rotary tables, etc.
