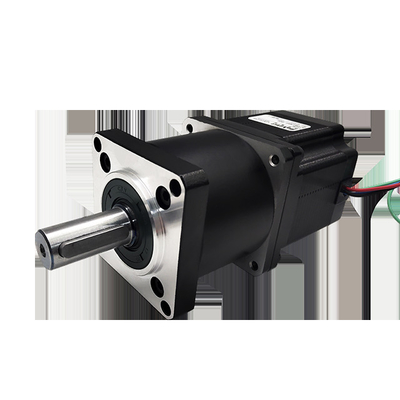

Automation Samsr NEMA 23 Stepper Motor with 10:1 Reducer Speed ​​Reducer Motor Reduction Gearbox NEMA 23 Motor Planetary Stepper One Stepper

1 Piece
$126.00(1 - 99 Pieces) $115.00(>=100 Pieces)
Automation Samsr NEMA 23 Stepper Motor with 10:1 Reducer Speed ​​Reducer Motor Reduction Gearbox NEMA 23 Motor Planetary Stepper One Stepper
Features Gallery Product Description Request A Quote
Warranty: 12 Months
Model Number: 57PG1450-010
Phase: 2
Type: Hybrid
Current / Phase: DC 4.5A/Phase
Product Name: Samsr Nema 23 Stepper Motor With 10:1 Reducer
Application: Automation
Rated Current: 4.5A
Reducer Ratio: 1:10
Rotor Inertia: 365g.cm2
Torque: 6N.m
Lead: 4
Shaft Diameter: 5.7mm
Motor Length: 54mm
Reducer Length: 53mm
Certification: Ce, ISO, RoHS
Basic Infomation
Certification: ce, ISO, RoHS
Model Number: 57PG1450-010
Payment & Shipping Terms
Packaging Details: Exported Box+Anti-drop bubble
Product Description

Samsr nema 23 stepper motor with 10:1 reducer speed reducer motor reduction gearbox planetary





Supply voltage


Motor size





Step angle:0.18°

No of phases: 2

Rated voltage: 2.33V

Rated current: 4.5A

Resistance: 0.63 ohm (AT 20°C)

Inductance: 2.4 mH

Holding torque: 6N.m(

Dielectric strength: 500V A.C

Insulation resistance: 100 MΩ

Insulation class: Class B

Temperature rise: 80K (Max)

Rotor inertia:

Gear ratio: 1:10

Allow of torque: 10 N·m

Allow of speed: 0~500(r/min)

Allowable thrust load: 180N

Allowable radial load:600N(on the shaft end)

Operation ambient temp:-20°C~+50°C

Operation ambient hum: 15%~90%

Life: 8000Hours

Weight: 1.34Kg

Product Detail

Optional ---Nema 23 stepper motor with planetary gearbox parameters:


1.Planetary gear motor with high torque,high precision, compact structure, low operating noise

2. First reduction backlash ≤15arcmin; second reduction backlash ≤25arcmin

Recommend driver:MD-2545
