Hot sale high precision noise encodr 12v 24v dc micro worm gear motor automotive silent fully enclosed car armrest micro worm gear motor

1 Piece
MOQ
Hot sale high precision noise encodr 12v 24v dc micro worm gear motor automotive silent fully enclosed car armrest micro worm gear motor
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TR60
Usage: Car, Electric Bicycle, Home Appliance
Type: GEAR MOTOR
Torque: 2kgf.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 84rpm
Continuous Current(A): <0.55A
Efficiency: IE 1
Certification: Ce, RoHS
Product Name: Worm Gear Motor
Motor Type: Carbon-brush Commutator
Gear Type: Worm Gear
Housing Material: Steel
Geartrain Material: Steel/Powdered Metal/POM
Bearing At Output Shaft: Ball Bearing
Lubricant: Grease For High-low Temperature
Backlash At No-load: <1,MIN0.3
OEM & ODM Service: Available
Certificate: CE,ROHS,ISO/TS16949
Basic Infomation
Certification: ce, RoHS, CE,ROHS,ISO/TS16949
Model Number: TR60
Payment & Shipping Terms
Packaging Details: ctn meas.:32*28*26cm 40pcs/ctn, N.W.:20kgs, G.W.:21kgs
Supply Ability: 10000 Piece/Pieces per Day
Product Description
Products Show

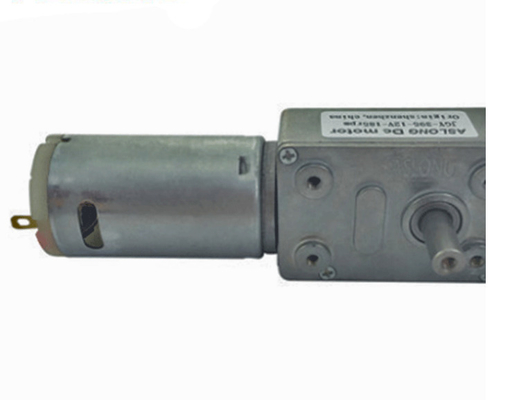

hot sale high precision silent noise car automotive electric armrest dc worm gear motor

Application

Challenges: Low noise, Long gearbox lifetime.Smooth and reliable precision movement.


Solution: Modify the gear profile and shape,set up right modification coefficient. Improve gear.


manufacturing accuracy and ensure concentricity of each part,to control whole module noise level.

The electric armrest refers to the armrest automatically moves forward and backward drived by a sliding system. Openning the armrest is just a matter of pushing a button.It’s a innovation comfort&convenience system which has been built in new models of Aston Matin.Twirl,as the Tier 2 supplier of automotive slidng armest system,developed worm gear motors that meet the most stringent quality requirements.

Product Description
Model
TR60GR124500-43KE7
Motor Voltage(VDC)
12
Motor no load speed(rpm)
4500
Gearbox reduction ratio
43
Gearmotor no load current(A)
<0.35
Gearmotor no load speed(rpm)
105+/-10%
Gearmotor rated load torque(kgf.cm)
2
Gearmotor rated current(A)
<0.55
Gearmotor rated load speed(rpm)
84+/-10%
Encoder
3ppr or 7ppr
Noise (DB)
<50DB
Lifetime
1000+ hours (varies by application)
Gear type
worm gear
Motor type
carbon-brush commutator
Housing material
Steel
Geartrain material
Steel and Powdered Metal,POM optional
Bearing at output shaft
ball bearing
OEM & ODM Service
Available
Certificate
CE,ROHS,ISO/TS16949

Outline

Packing & Delivery

Delivery Details : 1-2 weeks for samples, 3-4 weeks for mass production

Customer Photo

Favorable Comment



The motion solution is good. I am impressed by your enthusiasm hospitality and professional knowledge.

Favorable Comment



I am really imprssive and cheerful to visit Twril Motor.

Favorable Comment



Your factory is so organized and your quality control is very good.

Our Company

Company building

Machining center

Powder metallurgy processing center

Powder metallurgy processing center

Raw material warehouse

Assembly line

Office

R&D team

Our Strength

Engineering Excellence

Standard or custom, Twirl Motor has the engineering capability to meet your design requirements.

High productivity

Twirl's lean optimized manufacturing floor can accommodate both large and small orders

Quality Reliability

ISO/TS16949:2009 management system ensure the product quality.

Responsibility

We uphold our responsibility to our associates and our community

Service

We respond quickly to our customers' immediate needs.

OEM&ODM

OEM&ODM is our daily work,over 95% motors we are selling are OEM&ODM.

 ISO9001:2008

ISO/TS16949:2009

CE



        ROHS

SGS assessment

TUV assessment

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer.

Q: Can you make a motor with custom specifications?

A: Yes, actually that is what we do most of the time.

Q: What is the MOQ ?

A: 1 pc  for sample order, and 100pcs for bulk order(standard products).

Q:Where is your loading port ?

A:Ningbo Port, Shanghai Port, China.

Q:What is your production capacity?

A:About 10000 PCS per day.

Q: Can we type our brand on it?

A: Yes of course.
